EmoSPARK Dissection & Upgrading the Memory

A while ago, I shared a comparison of 46 Kickstarter & Indiegogo campaigns, where Indiegogo didn’t exactly come out ahead.  If you remember, one of the campaigns that was trailing behind on Indiegogo was EmoSPARK.  Well, surprisingly it finally shipped!

And it arrived, yesterday.

I met many challenges with EmoSPARK right out of the box, from the case obstructing the micro-USB and mini-HDMI, to basic Bluetooth and WiFi connectivity issues, to beat up hardware, to major connectivity issues – and of course an unnecessary dependency on Android devices.

I put a short video here showing some of the underbelly.

Well, rather than go into all the limitations and frustrations I decided to focus on some other things.

IMG_20150714_210912 IMG_20150714_211401

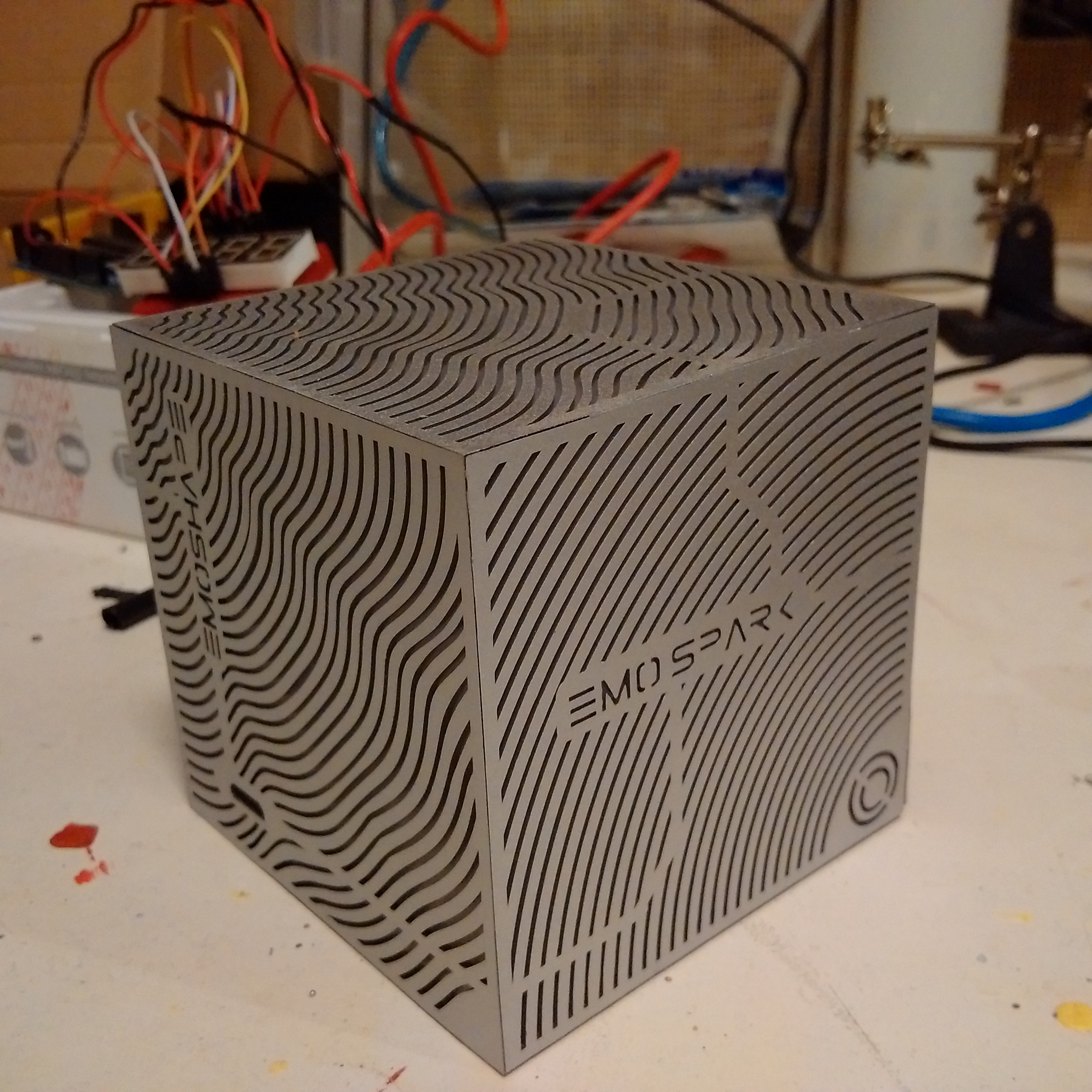

Images above show the case disassembled, with the bottom popped off.  The EmoSPARK itself is quite small, the sides of the case are held together with a few spots of superglue.  If you remove your casing, start on the bottom – the bottom tray slides right out.  In actual fact, you can pop-out the cards without removing the gray plastic at all and a bit of pressure and patience.

IMG_20150714_211413  IMG_20150714_211454_hdr IMG_20150714_211503_hdr IMG_20150714_211516_hdr

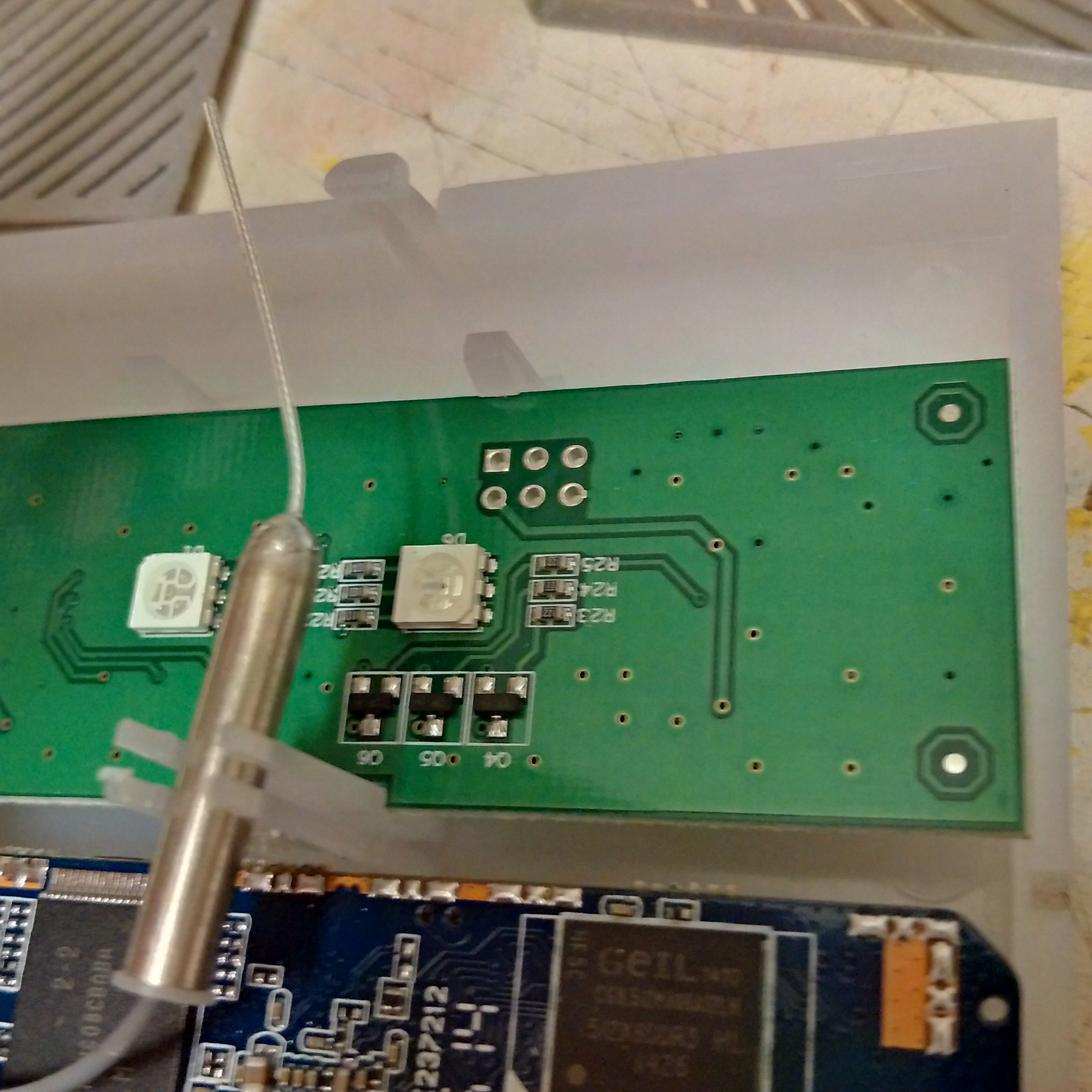

The images above show some of the chips and closeups, and the two 5050’s that light up the unit.  (Interesting tidbit, you can buy those LED’s for pennies on ebay).  Of interest, is that they created a micro-USB connector for connecting the LED’s to the mainboard, which is different.

There is also a tiny switch one side that is inner-facing that seems to do nothing at the moment.

IMG_20150714_211716_hdr IMG_20150714_211733_hdr IMG_20150714_212334_hdr

Once flipped over, you will see your first opportunity for an easy win.  I formatted and added a 16GB chip.  According to the device information there is 2GB onboard (an additional 4GB somehow stored on the device) and this allows me to bring it up to 22GB.

I haven’t checked the specs of the device yet.

IMG_20150714_212551_hdr IMG_20150714_212636_hdr IMG_20150714_212844 IMG_20150714_212920

Breaking into the software a bit, you can see some of what is installed by default (Adobe Flash 11.1 for example).  There is a package installer with Google Play ready to go AND a pre-installed controller for Android Gamepads.  That means, it can support Bluetooth gamepads out of the box (if you can find a way to pair them via Bluetooth).

IMG_20150714_213530 IMG_20150714_213616

Looking at the data usage, leaving it plugged in overnight for updates – the EmoSPARK used just over 8GB of data.  Not a problem for me, but certainly something to watch out for if you are on limited internet.

IMG_20150714_213641 IMG_20150714_213713

One of the first things I did, was add my BlackBerry as a Bluetooth device (it can run Android 4.x applications, and I’d much rather use that to communicate with EmoSPARK than an Android device, sorry folks!).

At the same time, I added my Surface (for Bluestacks), a Bluetooth mouse (emergencies – this way I don’t need to keep a USB mouse connected), and enabled PC connection – which should work over the MicroUSB port.

IMG_20150714_214035 IMG_20150714_214110 IMG_20150714_214211 IMG_20150714_214630

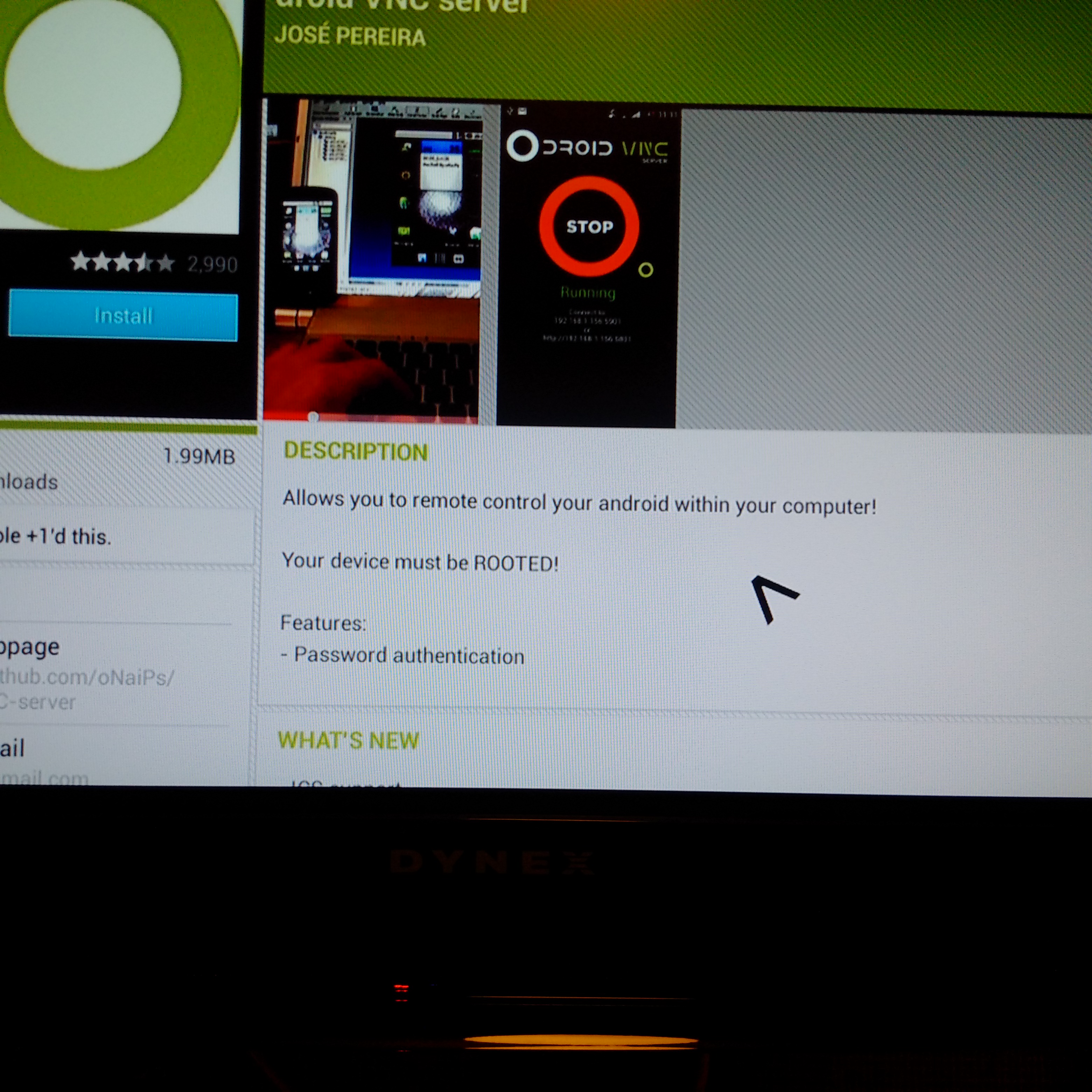

Moving on to Google Play, I installed a VNC client – the devices appear to be rooted which means you might also want to install ad-blocking!

This VNC client sorta works but it causes the EmoSPARK software package to crash.  Once you disconnect the VNC connection, the whole device freezes up and you need to reboot  I’ll look at another option later.  I also chucked AirDroid on the device.

That’s it for today!  Check back in the next article to see what else we can do now that we have access to the hardware and the device.
